KGN-M5810-005 Sub Servo Drive Circuit Board Original SMT Spare Part For YAMAHA YG200 Mounter

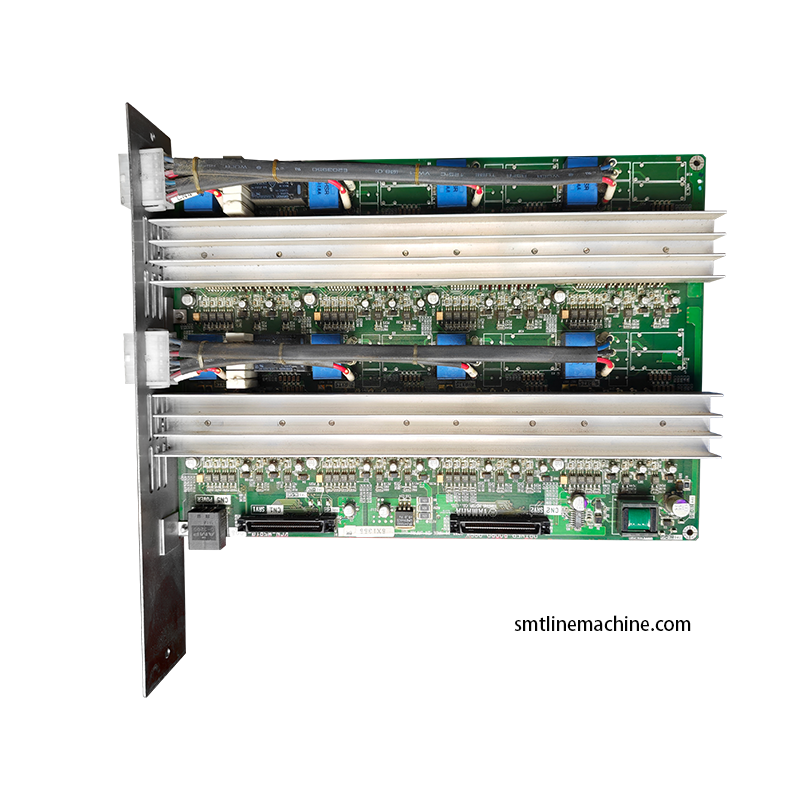

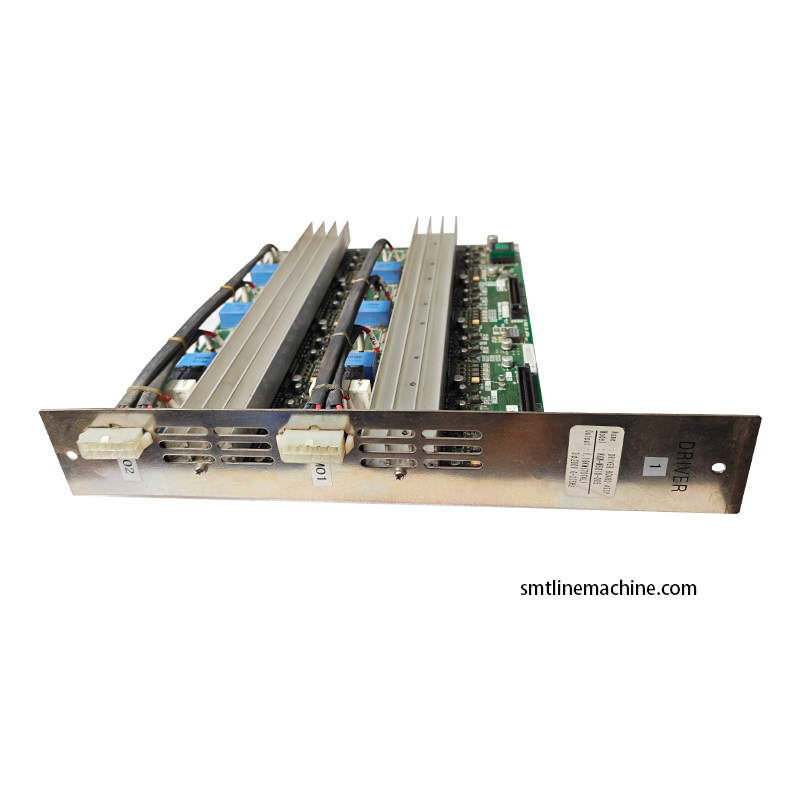

KGN-M5810-005 Sub Servo Drive Circuit Board
Original SMT spare part designed specifically for YAMAHA YG200 Mounter equipment. This factory-matched core control hardware integrates multi-channel servo signal processing chips and aluminum heat sink modules for reliable performance in industrial SMT manufacturing environments.
Technical Specifications
| Part Number | KGN-M5810-005 |
| Product Name | YAMAHA YG200 Sub Servo Drive Circuit Board SMT Mounter Control Board |
| Applicable Equipment | YAMAHA YG200 YG200L mid speed SMT placement machines for PCB mass production |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed within the electrical cabinet of YG200 series mounters, this control board handles real-time signal decoding and power output for X, Y, Z, and R four-axis servo motors. It converts host operation commands into precise drive pulses to regulate gantry movement speed and travel range while providing synchronous motor operating data feedback to capture overload and short-circuit faults, minimizing unexpected production halts in SMT assembly lines.
Core Functions
- Multi-channel independent servo signal loops ensure smooth four-axis synchronous linkage calculation and consistent placement positioning accuracy
- Integrated thickened aluminum heat sink rapidly conducts heat during continuous high-power operation to prevent circuit overheating failures
- Original standard pin interface supports direct replacement without rewriting machine programs for all YG200 equipment variants
- Multi-layer solder mask protected PCB substrate resists workshop oil and dust contamination to extend service cycle
Product Reliability
CNSMT supplies fully tested original KGN-M5810-005 servo drive circuit boards compatible with YAMAHA YG200 series mounters. The reliable signal transmission capability eliminates drive failure risks during mass PCB manufacturing, reducing equipment overhaul frequency for factories. Sufficient inventory supports fast global delivery to meet daily maintenance and spare part stocking requirements.
